MacBook Pro 2019 A2141 Data Recovery
The 2019 macbook pro has a non removable SSD drive. Data recovery can't be accomplished using traditional methods of removing the drive. Zero Alpha data recovery has proprietory techniques to recover data from the A2141 Macbook.
A2141 Macbook Pro 2019 Data Recovery Caselog
This Macbook Pro was taken to Apple where it was diagnosed with logic board issues. The inside of the logic board was covered in fibres. The board showed 5 volts on the charger.
PP3V3_G3H_RTC_X was 3.3 volts but charger indicated 5 volts. Removed faulty UA900 Chip which provides power for GPU circuits. Charger returned to 20 volts but GPU lines are all dead.
TPS62180 SSD & PP3V3_G3H power chip U9580/U9080/U6960/U6903/UA900/UG800 Chips are all the same.
Coke spilled into 2019 Macbook Pro 16 inch
This macbook had been to a computer store who could not solve it. Laptop was unopened. Upon inspection it was obvious that liquid had spilt through this laptop and was covered in brown sticky fluid top and bottom of the logic board.
Test results were 5v on charge port. PPVCCIO_S0_CPU short to ground. This circuit was effected by the liquid damage. CPU was dead. No smd were found to cause this issue. No other circuits detected as failed.
2019 MacBook A2141 with 5 volt problem
USB-C MacBooks get charged through their USB-C ports, using USB-C PD standard which allows to deliver high power through a USB-C connector by raising the voltage higher than the regular 5 volts we've been used to on legacy USB ports. This requires a handshake between the laptop and the charger through a dedicated data bus, so that the charger can tell the laptop what its capabilities are, and so the laptop can then request a higher voltage
USB-C charger should be 20v
The chip responsible for charging on this laptop is the CD3217B12
A common symptom of a faulty CD3217B12 is 5V charge instead of 20v. In most cases you’ll have to replace both chips on the board and not just one.

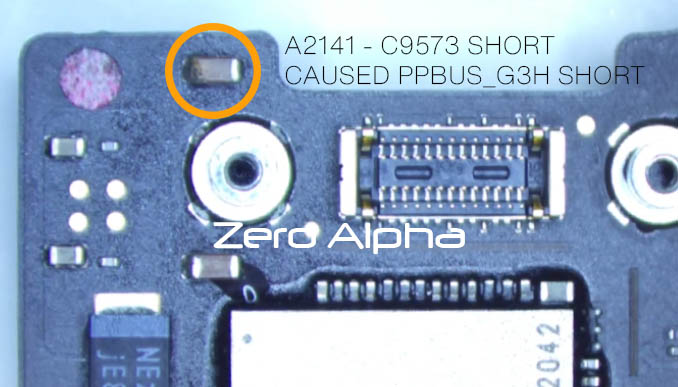

17Jan24 - The 5 volt problem was solved. PPBUS_G3H was short circuited. We were able to inject 1 ~ 2 watts of current into F7000. This found a short circuit on C9573. Removing this capacitor cleared the main power short and the charger immediately detected 20v on the USB-C charger. However the battery had been drained to 0.2volts.
01May24: We were able to recover all the data from this macbook by bypassing the battery which was completely discharged down to almost 0 volts.
2019 Macbook Pro Outdoor use Data Recovery Caselog
03Oct24: This laptop shutdown during use and became very hot. It was taken to the apple store who could not help the owner recover music data back. This laptop was delivered to Zero Alpha for data recovery. The battery was fully drained down to 0 volts. The charger shows 20volts but irratic amperage. C9500 heated up. Removed but still no boot. Checked again and C9588 is now glowing hot. Removed cap but no boot. No further issues found on thermal camera but now all SOC short circuits: PP0V9_SLPDDR, PP0V9_SSD0, PP1V05_PRIM, PPGFX_S0_GPU, PPVCC_S0_CPU, PPVCCPRIMCORE_PRIM_REG.
