Google Pixel 5A dissasembly

Heat edge of lcd. Pry edge like you would opening an iPhone

open google pixel 5A lcd
Screen is hot swappable.

Opens Right to Left

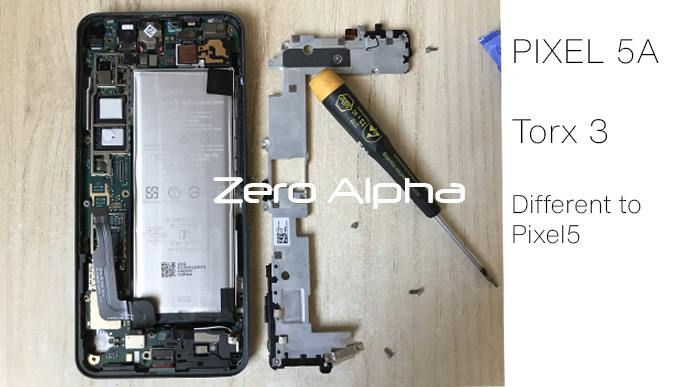

Pixel 5A motherboard

Use T3 screwdriver

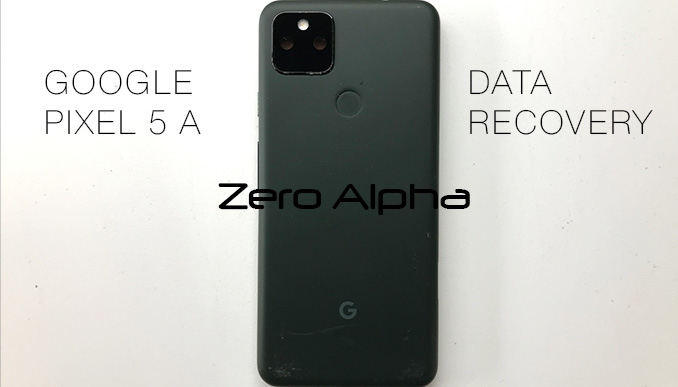

Pixel 5a Suddenly Dead Data Recovery

Went to take a picture and the screen froze. Pressed and held down the power button and it turned off...and never turned back on.

No water damage. No physical damage. Warranty expired 9/1. FML.

Guess I should have taken that trade in offer when I had the chance.

google pixel 5 a data recovery

Technical specifications of Google Pixel 5a:


  • 6.2-inch OLED display
  • 2400 x 1080 resolution
  • 90Hz refresh rate
  • HDR support


  • Octa-core Qualcomm Snapdragon 730G
  • Adreno 618 GPU

RAM and Storage:

  • 6GB of RAM
  • 128GB of internal storage (non-expandable)


  • 12.2MP rear camera with 4K video recording at 60fps
  • 8MP front-facing camera
  • Night Sight mode for low-light photography


  • 3,500mAh battery
  • 18W fast charging support
  • Wireless charging support

Other features:

google pixel 5A back data recovery

  • 5G-enabled
  • IPX8 water and dust resistance
  • USB-C port for charging and data transfer
  • 3.5mm headphone jack
  • Titan M security chip for enhanced security
  • Google Assistant integration
  • Android 11 operating system

Some common issues reported with the Google Pixel 5a include

google pixel 5 a inside

  1. Battery life: Some users have reported that the 3,500mAh battery on the Pixel 5a doesn't last as long as they expected.

  2. Slow charging: Some users have reported that the phone takes a long time to charge, even with fast charging capabilities.

  3. Display issues: Some users have reported issues with the OLED display, such as color accuracy, color shifting, and dead pixels.

  4. Camera performance: Some users have reported that the camera doesn't perform as well as they expected, especially in low-light conditions.

  5. Bluetooth connectivity: Some users have reported issues with Bluetooth connectivity, such as dropped connections or poor sound quality.

  6. Microphone issues: Some users have reported issues with the microphone, such as low audio quality or muffled pixel 5a data recovery pin connectors.jpgPin connectors for buttons
