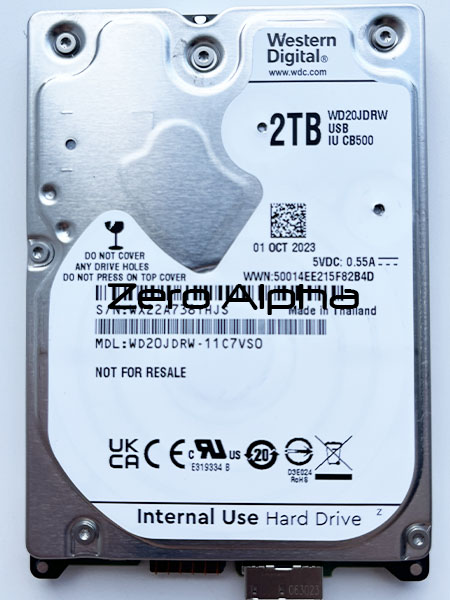

Western Digital WD20JDRW Data Recovery

Zero Alpha offers professional data recovery for WD WD20JRDW. This model is a 2TB hard drive commonly used for storage and backup. Users may face problems such as clicking noises, not detecting, or corrupted partitions. We provide safe and reliable solutions, and we accept mail in jobs from any location.

western digital wd20jdrw data recovery

Western Digital WD20JDRW Common Problems

  • Clicking noises – often due to failed read/write heads
  • Not detected by computer – caused by PCB failure or firmware corruption
  • Slow or freezing access – typically from bad sectors or weak heads
  • Incorrect capacity showing – firmware or translator module issues
  • No power or spin-up – often due to damaged PCB or failed TVS diodes
  • Stuck in a reboot loop – internal firmware faults causing failure to initialize
  • Missing or corrupted files – logical corruption from improper ejection or power loss
  • Password-locked drive – security features preventing access
  • Spins up then clicks and powers down – common symptom of internal mechanical failure

WD20JDRW Models

  • WD20JDRW-11C7VS0
  • WD20JDRW-11C7VS1

Tool: W2-2

Dropped on Concrete WD20JDRW-11C7VS0 data recovery caselog

15May25: This wd my passport was dropped on concrete. The drive was clicking. We rebuilt the drive with new heads and were able to get the data back for the owner.

Coffee Damage HDD WD20JRDW-11C7VS0 Data Recovery Caselog

17Sep25: This hard drive had liquid coffee spilled into it causing it to stop working. It has caused a lot of damage to the electronics with rust, corrosion and oxidation . PCB: 2060-810082-000. We did a lot of micro soldering to fix it. Model: WD20JRDW-11C7VS0. WD My passport.



WD20JDRW-11C7VS1 Not spinning Data Recovery Caselog

28Sep26: This 2tb WD20JDRW-11C7VS1 western digital hard drive was mailed in for data recovery from Buderim QLD. When you powered it on it would not spin up. We opened the drive and found the heads jammed onto the platters. We unlocked the firmware and converted the 2060-810082-000 REV P0 pcb to sata. We made safety modifications to the firmware to block writing but the T2 showed 99.5% non addressable. First we tried to solve a T2 problem but after repower the drive we got data access anyway.
