Western Digital WD7500BPVT Data Recovery

Zero Alpha offers professional data recovery for WD7500BPVT. This Western Digital hard drive was available in capacities including 750GB. Common failures include accidental deletion, partition corruption, bad sectors, firmware faults, PCB failure, and damage following drops or power issues. We accept mail in jobs from Australia and worldwide.

Western Digital WD7500BPVT data recovery

Western Digital WD7500BPVT Common Problems

  • Drive is not detected by the computer or BIOS.
  • Clicking, beeping, or unusual mechanical noises.
  • Bad sectors causing slow access or read errors.
  • Firmware corruption preventing normal startup.
  • PCB failure after a power surge or incorrect power supply.
  • File system corruption resulting in inaccessible data.
  • Accidental deletion or formatting.
  • Physical damage caused by impact or dropping the drive.

Western Digital WD7500BPVT Models

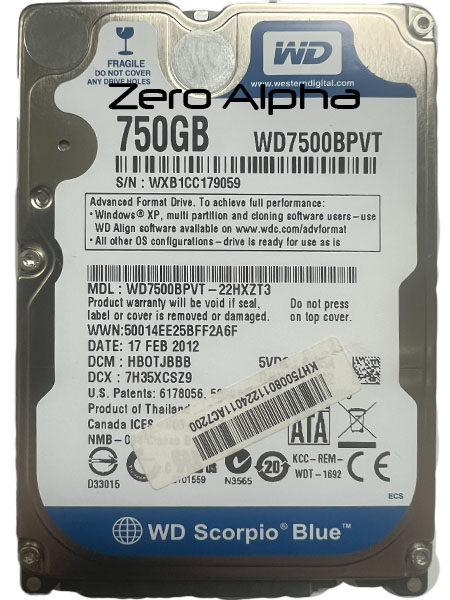

  • WD7500BPVT-22HXZT1
  • WD7500BPVT-22HXZT3
  • WD7500BPVT-22JJ5T0
  • WD7500BPVT-24HXZT1

WD7500BPVT-22HXZT3 Data Recovery Caselog

10JUL26: The drive was received after the client reported that the volume was no longer accessible despite the drive being detected normally. Initial diagnostics confirmed the hardware was responding correctly, however the partition structure could not be interpreted. Data Extractor reported the following during analysis:

(LBA + Count - 1) <0!partition_entry_array not read
Init Primary EFI_GPT failed
EFI_GPT_Header valid
Try [EFI_GPT_Header.alternate_lba]
[EFI_GPT_Header.alternate_lba] read OK
(LBA + Count - 1) <0!partition_entry_array not read
Init Secondary EFI_GPT failed
The process can be performed in the background!
Operation aborted, Soft-reset is requires!

Analysis showed that although GPT header information was present, both the primary and secondary GPT partition entry arrays were unreadable due to corruption. The partition layout was manually reconstructed using the remaining metadata and file system structures. Once the correct partition boundaries were rebuilt, the client's files were successfully recovered and verified
