Seagate Shorting Points

Welcome to Zero Alpha, Australia's Number 1 Data Recovery Service. Here we provide technical guides on shorting points for Seagate Hard Drive PCBs for expert use only. If you need to use our mail in data recovery service to get data back from a faulty seagate drive then please contact us to book a data recovery service.

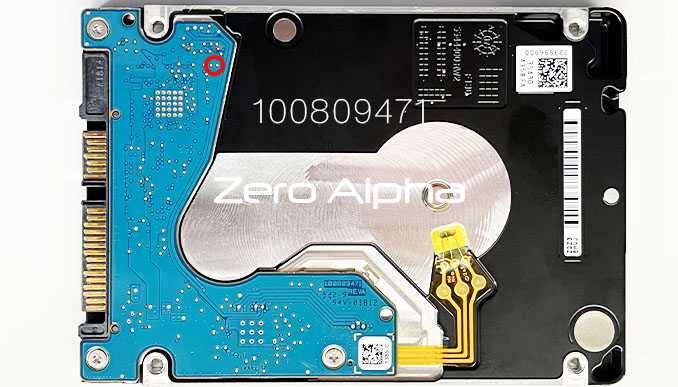

100809471

10Jun25: Drive gives full ID but stays busy on any command. To get terminal access wait for drive to ask for unlock. Then short while holding control+z. If drive does not respond or shows (1Ah)-Serial Port Not Ready. Then release short momentarily to allow more firmware to load. Drive will give F3 T prompt.

Seagate PCB 100809471 Shorting Points Data Recovery

100781943

seagate 100781943 shorting points


100794976

seagate 100794976 shorting points100794976


100835923

seagate shorting points 100835923

14Apr2023:
Model : ST2000LM007-1R8174, Serial : ZDZF8M34, Firmware : EB01, Capacity : 0 MB (-     1)
Unlock tech mode patch Wait 1 second. Short. Spam Control+Z

14May2025:
Model : ST2000LM015-2E8174, Serial : WY21HF65, Firmware : 0001, Capacity : 2 TB (3 907 029 168)
Can't patch via terminal or shorting points. Patched via programmer. MRB.


100815565

100815565 shorting point


100574451

seagate shorting point for 100574451
06APR23: For bricked drive:
Short after the first click and the first message shows up on terminal:
Rst 0x20M
RW: Disc Ctlr Initialization Completed.
(P) SATA Reset
Terminal was unbricked after changing HDD ID but drive was still bricked

28APR23 : ST2000DM001 , PCB 100717520 REV A

Drives stays bsy, does not ID. Found shorting points on the internet, shorted and turned on the drive, spammed ctrl+z and got a terminal access


100687658

seagate 100687658 pcb shorting points


100664987

seagate pcb 100664987 shorting points

15May24- Try to short yellow channel first,if does not work-try read channel-picture is above


Seagate JTAG

For seagate jtag reverse engineering please contact us on hddguru

seagate jtag pinout
