Angelbird AV Pro CF CFast Data Recovery

The Angelbird AV Pro CFast card data recovery service for when you need your photos and videos back. Here, we outline the most common problems associated with these cards that necessitate data recovery.

1. Physical Damage

CFast cards are robust but can suffer from physical damage due to mishandling. Common scenarios include:

• Bent or Broken Pins: Frequent insertion and removal from devices can damage the connector pins.
• Card Cracking: Dropping the card or applying excessive pressure can crack the casing, exposing internal components to further damage.
• Liquid Damage: Exposure to water or other liquids can corrode contacts or short internal circuits.

2. File System Corruption

Issues with the card’s file system are a common cause of data inaccessibility:

• Improper Ejection: Removing the card from a camera or card reader during a write process can corrupt the file system.
• Power Failures: Sudden power loss during data transfers can leave the card in an unreadable state.
• Unsupported Formatting: Formatting the card with incompatible devices or systems can render the data inaccessible.

3. Logical Errors

Logical issues can arise due to software malfunctions or user errors, including:

• Accidental Deletion: Files or entire folders may be mistakenly deleted during use.
• Formatting Errors: Formatting the card without a backup results in the loss of all existing data.
• File Fragmentation: Intensive use over time may lead to fragmented files, making them unreadable.

4. Wear and Tear

CFast cards have a limited lifespan due to the finite write cycles of NAND flash memory:

• Read/Write Degradation: Overuse can cause sectors to wear out, resulting in slower performance and potential data loss.
• Bad Blocks: Aged memory cells can fail, causing files stored in those sectors to become corrupted or inaccessible.

5. Firmware Failures

Angelbird CFast cards rely on internal firmware to manage data storage. Firmware issues can manifest as:

• Unrecognized Card: Devices may fail to detect the card due to firmware corruption.
• Locked Files: The card might show files as inaccessible or locked, even though they appear intact.
• Sudden Free Space Errors: The card reports incorrect available space, preventing new data from being written.

6. Compatibility Issues

While Angelbird cards are designed for professional use, compatibility problems can arise:

• Camera Firmware Conflicts: Older camera firmware may not fully support newer CFast cards.
• Reader Incompatibility: Using an incompatible card reader can lead to improper communication with the card.

7. Overheating

CFast cards can heat up during extended high-speed data transfers:

• Thermal Damage: Prolonged overheating can cause permanent damage to the memory cells.
• Data Corruption: Heat-induced errors may result in corrupted files or inaccessible data.

Angelbird CFast 256gb Stopped Detecting in Reader Data Recovery Caselog

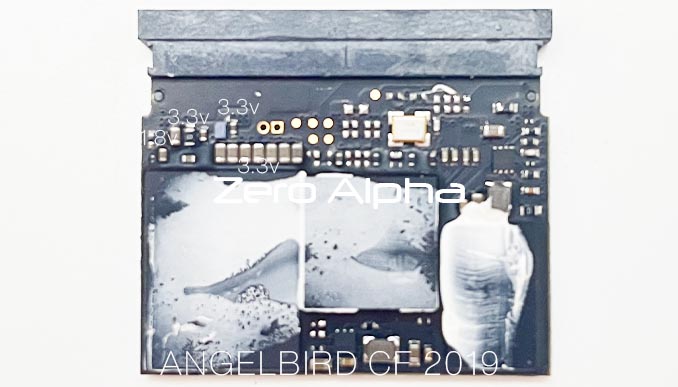

06Dec24: This memory card stopped detecting in the camera and reader. Zero Alpha can recover .braw files from this device. Camera: Black magic pocket 6k. A voltage load chip was not operating and removed and bypassed for data recovery. The memory card did come back to life but needed a lot of imaging due to very poor loss of readyness. The customer was happy to get all the data back. VLC could not decode the format "brlt" (No description for this codec) was an error trying to test the files.
