Seagate ST4000LM024 Data Recovery

We offer professional data recovery services for the Seagate ST4000LM024 hard drive, trusted by individuals and businesses alike. Whether your drive has failed due to physical damage, logical corruption, or firmware issues, we can help. We accept mail-in jobs Australia-wide, making data recovery easy no matter where you are.

seagate st4000lm024 data recovery

Seagate ST4000LM024 Common Problems

  • Drive not detected in BIOS
  • Clicking or beeping noises (head crash)
  • Slow or freezing performance during file access
  • Firmware corruption (e.g., translator or module damage)
  • Bad sectors or unreadable data areas
  • Damaged PCB or power surge issues
  • File system corruption or accidental formatting

Seagate ST4000LM024 Models

  • ST4000LM024 HN-M401RAD
  • ST4000LM024-2AN17V
  • ST4000LM024-1AA17V

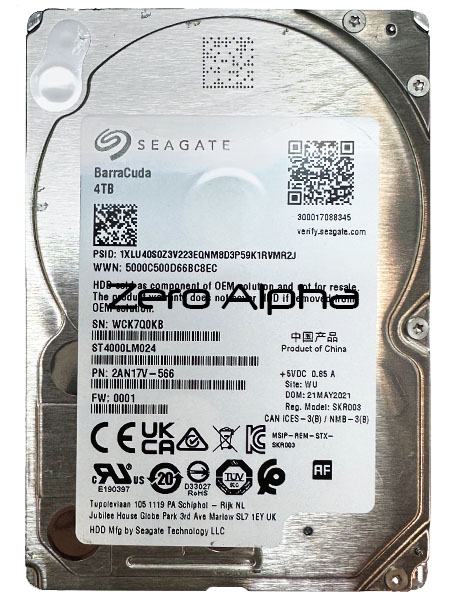

ST4000LM024 Whistling and Clicking Data Recovery Caselog

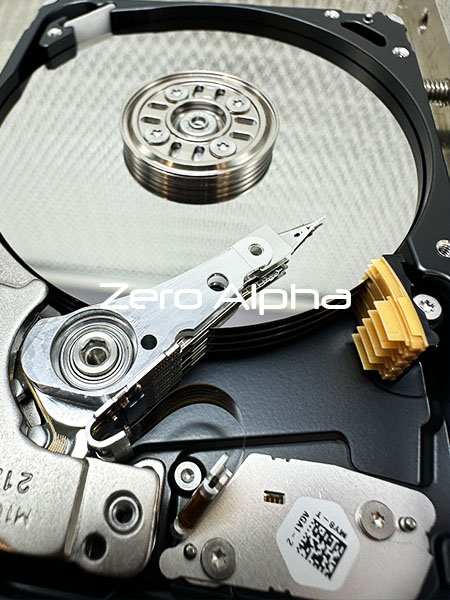

14AUG25: This Seagate hard drive makes weird whistling, clicking sounds when you power it on. PCB number: 100794976 REV C. The top platter is absent. The drive had stiction, but the heads were too badly damage and they needed MHA Swap.
Fam ID................... : 0xA1 (M11)
Fam Member............... : 0x12
SN....................... : WCK7Q0KB
Servo FW rev code........ : 0xD60A
Max head................. : 7
Seek mode................ : 2000
Flags.................... : 1A39
Head vendor.............. : default
RRO mode................. : 0005
Logical head map......... : 00 01 02 03 04 05 06 07 08 09
Date..................... :聽 2021

seagate ST4000LM024 clicking data recovery

ST4000LM024 Playstation Hard Drive Data Recovery Caselog

The ST4000LM024 is a reliable and spacious internal hard drive designed for use as extra storage in PlayStation consoles, offering an impressive 4TB of storage capacity. Its 2.5-inch form factor makes it a suitable choice for the limited space within gaming consoles, ensuring a seamless integration into your PlayStation setup. With a rotational speed of 5400 RPM, the drive provides a good balance between performance and power consumption, enhancing your gaming experience without compromising on system responsiveness. The large storage capacity allows you to store a vast library of games, downloadable content, and multimedia files, providing ample room for future game releases and updates. The ST4000LM024 is known for its durability and reliability, making it a dependable choice for those seeking additional storage space for their PlayStation console, ensuring a smooth and uninterrupted gaming experience.

The hard drive has a PCB number of 100794976 and a family F3 Arch.

Seagate ST4000LM024 2AN17V-566 4TB Barracuda Data Recovery

A customer came into Zero Alpha Data Recovery with a hard drive used in a playstation as additional storage. The hard drive was not detecting anymore with a bad clicking sound when trying to open the files. Data recovery from a PlayStation involves the retrieval of lost or corrupted game files, save data, or other digital content. In the event of accidental deletion, system crashes, or hardware failure, specialized data recovery tools and techniques can be employed to salvage and restore lost information. PlayStation consoles often use proprietary file systems, making it crucial to employ recovery methods that are compatible with these formats.

Clicking ST4000LM024 4tb Data Recovery Caselog

15NOV23: Hard drive came in clicking when starting up. The hard drive fully ID'd with a ABR error. A logical test ran froward for 50 seconds with many errors but spun down after this time.

Log:

Software can`t control COM port signal level for this USB/COM adapter
聽
Switching HDD power supply ON

Switching HDD power supply OFF

Switching HDD power supply ON
Family ID by HDD ID: 00
Selected 聽Family ID: 00
Selected family......................... : 00, F3 Arch (common)
Model by ID............................. : ST4000LM024-2AN17V 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽
聽
Tech Key...
Error executing command 聽"En Tech" (ABR)

Switching HDD power supply OFF

Switching HDD power supply ON
Flash type inx... 0x0000000C
Flash size....... 0x00200000
Flash prm dmp.... 0xEF 0x60 0x10 0x0B 0x05 0xFF 0x01 0x03 0x3C 0x20 0x40 0x04 0x00 0x01 0x00 0x00聽

Terminal:

Boot 0x80MMC000Y0001 聽 聽
SpinUp
聽FAIL 聽Servo Op=0100 Resp=0007
聽0100 9000 0000 0001 0000 9015 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
聽ResponseFrame 1840 0000 0000 EBC0 0000 0000 0000 0000 0C92 0000 CE00 0000 43D7 370C 0005 0100 8597 FFFF 2000 0000 0000 0505 0003 1EBF 0000 C350 0000 0000 0020 2247 0019 0005 0000 Loop=2247Motor startedHeads loaded
聽FAIL 聽Servo Op=0100 Resp=0007
聽0100 9000 0000 0001 0000 9015 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
聽ResponseFrame 1900 0000 0000 EBC0 0000 0000 0000 0000 0C92 0001 CE00 0000 43B9 3739 0005 0100 8597 FFFF 2000 0000 0000 0505 0000 C350 0000 C350 0000 0000 0020 2247 0019 0005 0000 Loop=2247Motor startedHeads loaded
>聽
Boot 0x80MMC000Y0001 聽 聽
SpinUp
聽FAIL 聽Servo Op=0100 Resp=0007
聽0100 9000 0000 0001 0000 9015 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
聽ResponseFrame 17C0 0000 0000 EC00 0000 0000 0000 0000 0C86 0000 CE00 0000 43D5 3717 0005 0100 85AA FFFF 2000 0000 0000 0505 0003 1EBF 0000 C350 0000 0000 0020 2247 0019 0005 0000 Loop=2247Motor startedHeads loaded
聽FAIL 聽Servo Op=0100 Resp=0007
聽0100 9000 0000 0001 0000 9015 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
聽ResponseFrame 1940 0000 0000 EC00 0000 0000 0000 0000 0C86 0001 CE00 0000 43B8 3738 0005 0100 85AA FFFF 2000 0000 0000 0505 0000 C350 0000 C350 0000 0000 0020 2247 0019 0005 0000 Loop=2247Motor startedHeads loaded

Read ROM Via Terminal into Profile. Information from the ROM:

CAP
###
Validation Key........... : 0x00000020
Fam ID................... : 0x72 (Kahuna_5400)
Fam Member............... : 0x1
Head count............... : 8
Date..................... : 13 Dec 2016
SN....................... : WCK06J53
PCB SN................... : 0000E723MQ1W
PCB PN................... : 每每每每每每每每每每
WWN...................... : 5000C500A825048B
MDL1..................... : ST4000LM024-2AN17V 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽
MDL2..................... : ST4000LM024-2AN17V 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽
Capacity................. : 7814037168
聽
RAP
###
Format revision.......... : 0x0206
Contents revision........ : 0x27031300
Number Sys Zones......... : 1
Number User Zones........ : 150
Heads count.............. : 12
FW Implementation Key.... : 0x1E
聽
SAP
###
Addr 0................... : 0x00112F00
Addr 1................... : 0x80000000
聽
Fam ID................... : 0xA1 (M11)
Fam Member............... : 0x12
SN....................... : WCK06J53
Servo FW rev code........ : 0xD40B
Max head................. : 7
Seek mode................ : 2000
Flags.................... : 1A39
Head vendor.............. : default
RRO mode................. : 0005
Logical head map......... : 00 01 02 03 04 05 06 07 08 09

ST4000LM024-2AN17V 4TB No spin up when connected to USB connector Data Recovery Caselog

08OCT24: This hard drive came in from a customer and did not show any activity when plugged in. Usually a hard drive will have an LED light and spin up but this had zero activity. Its from a Seagate Backup Plus Model SRD00F1, P/N: 1K9APV-500. Made in 2018 in China. We were able to recover all the TV and Movie files by bypassing the USB connector.
