Seagate ST8000AS0002 Data Recovery

At Zero Alpha Data Recovery, we regularly receive failed Seagate ST8000AS0002 Archive HDD 8TB drives for recovery. While these drives offer high capacity for cold storage and archiving, they are particularly vulnerable to certain failure modes. Understanding these common problems can help users avoid irreversible data loss and ensure timely recovery.

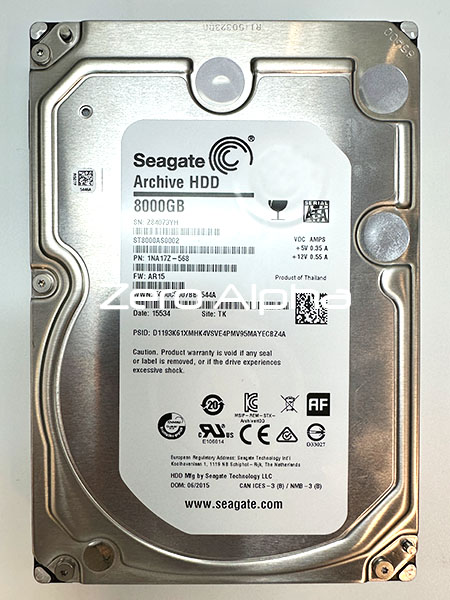

seagate archive ST8000AS0002 hard drive data recovery

Seagate ST8000AS0002 Common problems

1. Shingled Magnetic Recording (SMR) Write Limitations

The ST8000AS0002 uses SMR (Shingled Magnetic Recording) technology, which layers data tracks to increase density. This design makes large write operations slow and error-prone, especially after prolonged use. In degraded conditions, the drive may become unresponsive or stall during read/write operations, making data access extremely difficult.

2. Frequent Head Failures

This model is prone to read/write head failures, especially after extended power-on hours or physical shock. Symptoms include clicking noises, slow detection, or failure to spin up correctly. Head failure often requires a cleanroom head swap and precise donor part matching to recover data.

3. Firmware Corruption

Firmware stored on both the PCB and the platters can become corrupted due to power loss, firmware bugs, or hardware instability. A corrupted firmware can prevent the drive from initializing correctly or cause it to appear with the wrong capacity or no model number at all.

4. PCB and ROM Damage

The controller board on this drive contains adaptive calibration data critical for access. Power surges or overheating can damage the board, making the drive undetectable. Recovery requires not just a donor PCB, but also a transfer of the ROM chip to retain compatibility.

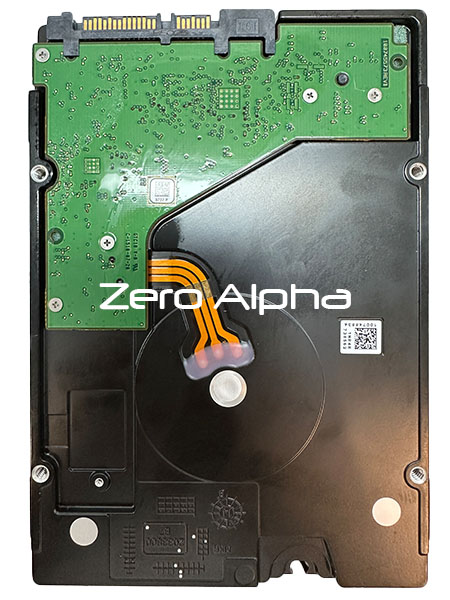

seagate archive ST8000AS0002 pcb 100745573 rev b data recovery

Seagate archive ST8000AS0002 pcb 100745573 REV B data recovery

5. Slow or Frozen Drives Due to Translator Issues

Translator corruption—especially in SMR drives like the ST8000AS0002—can cause the drive to freeze when accessed or stall during cloning. This issue is often misdiagnosed as a hardware failure. Specialized firmware-level tools are required to temporarily fix the translator and allow safe imaging.

6. Motor or Spindle Problems

Motor failure or seized spindle bearings are also reported, particularly if the drive has been dropped or suffered shock. In such cases, the platters do not spin at all, and a full internal transplant is needed using a compatible donor drive.


Seagate ST8000AS0002 Data Recovery Caselog

23Apr25: This hard drive was mailed in for data recovery. It has 8tb storage capacity. The hard drive was clicking and spinning down.

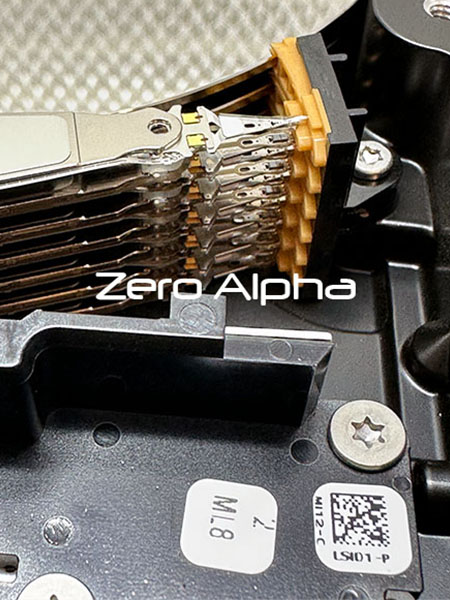

seagate archive ST8000AS0002 clicking hard drive inside view data recovery
