Samsung 980 PRO SSD Data Recovery
At Zero Alpha Data Recovery, we offer professional data recovery for Samsung 980 PRO SSDs. This high-performance PCIe Gen4 NVMe drive is popular in gaming PCs and workstations, but it can suffer from sudden failure due to firmware issues, controller faults, or power-related damage. If your 980 PRO has stopped working or is no longer recognised, we can help. We also accept mail-in jobs Australia-wide, so you can send your drive to us from anywhere.
Samsung 980 PRO SSD Common Problems
- SSD not detected in BIOS or operating system
- Drive shows 0MB or incorrect capacity
- Sudden data loss or corrupted files
- Firmware failure (notably on early versions)
- Freezing or crashing under load
- Partition appears as RAW or unallocated
- Drive stuck in read-only mode
- Overheating or thermal shutdown
- Power surge or voltage-related failure
- Blue screen errors (BSOD) when accessing the SSD
2TB Samsung 980 PRO MZ-V8P2T0 Data Recovery Caselog
22Apr26: This 2TB Samsung 980 SSD came in for data recovery because it stopped being detected. It was a spare data SSD and not the Windows boot SSD. One of the data pins had corrosion on it. We fixed this data pin and were able to get access to the SSD and successfully recover all the photos and files. Controller: Samsung S4LV003

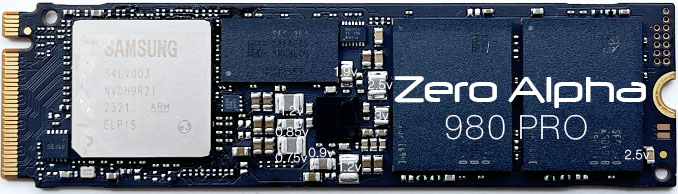

Samsung 980 Pro SSD Schematic Voltages Test Points
Samsung 980 nvme ssd drives can fail from electronics problems. The picture below shows which points should test for what voltages to find problems for this ssd drive.
Samsung 980 Pro MZ-V8P1T0 1TB NVMe M2 SSD Data Recovery Case Log
Samsung 980 Pro MZ-V8P1T0 Data Recovery 1TB SSD Case Log
19Oct23: This SSD was being used inside an NVMe adapter by Realtek which converts it from PCIe to USB-C. It was not detecting but did work inside an M.2 slot.
