Alcor Micro USB Data Recovery

At Zero Alpha Data Recovery, we provide professional data recovery services for USB flash drives using Alcor Micro controllers. Alcor Micro controllers are commonly found in budget, OEM, promotional, and branded USB flash drives. While these controllers are widely used, they can present unique challenges when a USB drive becomes unreadable, reports incorrect capacity, shows "No Media", or is no longer detected by a computer.

Many Alcor-based USB drives use advanced flash translation layers (FTL), wear levelling algorithms, bad block management, and controller-specific data layouts. In severe failures, recovering the data may require direct access to the NAND memory chips using specialist forensic equipment rather than traditional software recovery methods.

Common Alcor Micro USB Drive Problems

  • USB drive not detected
  • Drive shows 0 bytes capacity
  • "No Media" error
  • RAW file system
  • Drive requests formatting
  • Write protected USB drive
  • Firmware corruption
  • Fake capacity USB drive
  • Slow or unstable detection
  • Physical NAND flash failure
  • Controller failure
  • USB connector damage

Common Alcor Micro Controller Families

The following models are commonly encountered during professional data recovery work. Some revisions share similar architectures but require different recovery procedures.

  • AU6980
  • AU6981
  • AU6982
  • AU6983
  • AU6984
  • AU6985
  • AU6986
  • AU6987
  • AU6988
  • AU6989
  • AU6989SN
  • AU6989AN
  • AU6990
  • AU6991
  • AU6992
  • AU6993
  • AU6995
  • AU6996
  • AU6998
  • AU6998SN
  • AU9380
  • AU9381
  • AU9382
  • AU9387
  • AU9390
  • AU93xx Series

Note: Alcor Micro produced numerous package variants, OEM revisions, and controller derivatives. Some drives may identify themselves using alternative markings even when internally based on an AU6989 or AU6998 architecture.

CC-AU003G-HF (AU6998) Data Recovery Caselog

13Dec24: This usb flash drive failed to detect. The nand chip was FF filled. Common layout: AU6998 1138 Xor 6771_256 aECC

usb cc-au0036-hf data recovery

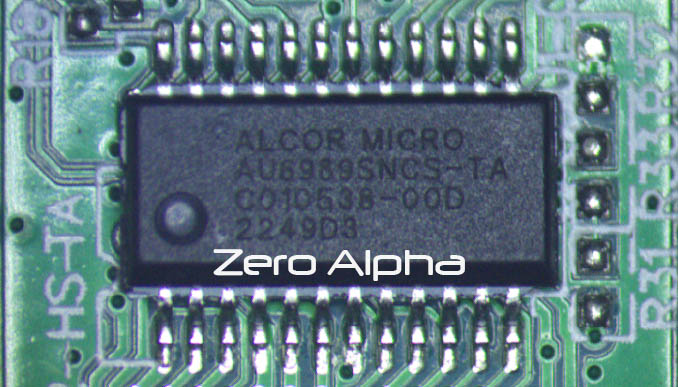

AU6989SNCS-TA USB Data Recovery Caselog

16Jun26: This au6989 controller was found in a harry potter branded usb flash drive.

alcor micro AU6989SNCS-TA usb data recovery

Alcor Micro AU6987ANHL-2 Data Recovery Caselog

This Verbatim usb flash drive stopped working and the client brought it in for data recovery. We test all the electronics and even find the schematics to help work with it. Its powered by a Alcor Micro AU6987ANHL-2. Only one record of this controller being solved. Hynix chip H2DTDG8UD1MYA for name H2D does not show up in any solutions.

Verbatim USB data recovery with AU6987ANHL
