Western Digital 2TB WD20EARS-00S8B1 Data Recovery

The user, in a moment of inadvertence, plugged in the wrong power supply from a laptop into their WD enclosure, resulting in an inaccessible drive. Fortunately, the experts at Zero Alpha Data Recovery were able to step in and recover all the lost data. Let's delve into the details of this recovery operation and highlight the importance of professional data recovery services.

The Scenario: A Misguided Power Supply

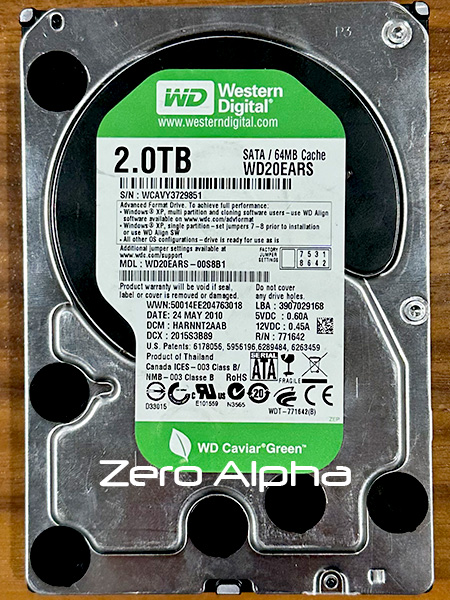

WD20EARS-00S8B1 data recovery

Our story begins with a well-intentioned user trying to access their Western Digital 2TB WD20EARS-00S8B1 external hard drive. As a common oversight, they accidentally used the power supply from their laptop, which differed from the dedicated power supply meant for the WD enclosure. This simple mistake had catastrophic consequences, as the drive was no longer recognized by the computer, and the data stored on it became inaccessible.

The Challenges Faced

The Western Digital WD20EARS-00S8B1 is a 2TB external hard drive known for its storage capacity and reliability. However, when subjected to incorrect voltage, it can be susceptible to various issues such as power surges, electronic component damage, and logical errors in the file system. This presented several challenges for data recovery:

  1. Physical Damage: The incorrect power supply could have caused physical damage to the hard drive's components.

  2. Data Corruption: The power surge may have led to data corruption within the drive, making it difficult to retrieve files.

  3. Inaccessibility: The drive was no longer recognized by the computer, indicating a critical connection issue.

When the user realized the gravity of their mistake, they immediately sought professional data recovery assistance. They turned to Zero Alpha Data Recovery, a company renowned for its expertise in data retrieval and their track record in handling challenging cases like this one.

Here's how Zero Alpha Data Recovery tackled the problem:

  1. Diagnostic Assessment: The first step involved a comprehensive diagnostic assessment of the WD20EARS-00S8B1 drive. This helped identify the extent of the damage and the best course of action.

  2. Hardware Repairs: In cases of physical damage, skilled technicians carefully repaired or replaced damaged components within the drive to restore its functionality.

  3. Data Extraction: Once the hardware was restored, the experts used advanced tools and techniques to extract the data from the drive.

  4. Data Verification: Every piece of recovered data was meticulously verified to ensure its integrity and completeness.

The Successful Outcome

WD20EARS-00S8B1 pcb 2060-771642-001 rev p1 data recovery

PCB 2060-771642-001 REV P1

The efforts of Zero Alpha Data Recovery paid off, and the user's entire dataset, including important documents, photos, and personal files, was successfully recovered. The files were returned in a secure and accessible format, much to the relief of the customer.

The Importance of Professional Data Recovery

This success story serves as a reminder of the importance of professional data recovery services. In situations where data loss occurs due to accidental mishaps, hardware failures, or other unforeseen circumstances, the expertise of specialists like Zero Alpha Data Recovery can make all the difference.

Here are a few key takeaways:

  1. Safety Precautions: Always use the correct power supply for your external hard drives and other devices to prevent unnecessary damage.

  2. Backup Your Data: Regularly backing up your data to a separate location or cloud service can save you from the devastating consequences of data loss.

  3. Trust the Experts: In the event of data loss, don't attempt DIY solutions that could potentially worsen the situation. Seek the assistance of professional data recovery services.

Conclusion

The Western Digital 2TB WD20EARS-00S8B1 data recovery success story, with the help of Zero Alpha Data Recovery, serves as a testament to the skill and dedication of data recovery experts. Accidents happen, but when they do, it's reassuring to know that there are professionals ready to step in and recover what's most valuable to us – our data. Remember to take precautions, back up your data, and don't hesitate to reach out to trusted data recovery specialists when the need arises.

Data Recovery Case Log

17Oct23:

Model : WDC WD20EARS-00S8B1
Firmware : 80.00A80
Capacity : 2 TB (3 907 029 168)

Family:................................. : DragFly4
Techno mode key......................... : Ok

HDD Status sector....................... : Ok

RAM:
System controller (SoC)................. : 88i9045B0 0x(63B0)
HDD Info reading........................ : Ok
Heads number............................ : 8
Cyl Count............................... : 192

ROM:
Read ROM................................ : Ok
ROM Data size........................... : 256 Kb
Flash ROM dir reading................... : Ok
Flash ROM dir reading (Ext)............. : Ok (Active)
Modules directory address............... : 251 150
SA regions address...................... : by default
SA regions address (RAM)................ : by default
Module 02 access........................ : Granted

SA SPT.................................. : 1974

SA Translator loading................... : Ok
SA defects assigned..................... : 8

ROM Modules:
ROM version............................. : 80.E6C
Module 4F F/W version................... : 008000CM
Overlay F/W version..................... : 80.E7C
Servo F/W version....................... : 04.0E

Heads configuration..................... : by map
Heads number............................ : 8
Heads number in use..................... : 8
Switched off heads...................... : No
Heads map............................... : 0,1,2,3,4,5,6,7

Relocations............................. : 0 (1 465)
Read ROM DCM............................ : Ok

Power up log reading.................... : Ok
Power up load dir data.................. : Yes
Power up load permovl................... : Yes
Power up load CFG data.................. : Yes
----+------+---------+----------+----------+------------------------------------------------------
 NN | Step |    Time |    Flags |     Info | Description
----+------+---------+----------+----------+------------------------------------------------------
 57 |  219 | 15.36 s | E37FFF7E | 51043746 | OVL_POWERUP_LOAD_DLG3P_FILE(FM ERR NOT FOUND IN DIR)
----+------+---------+----------+----------+------------------------------------------------------

Service area:
SA dir reading (ID)..................... : Ok
Dir items loaded........................ : 397

SA Access............................... : Copy 0,Copy 1

Configuration reading................... : Ok
CFG tech mode lock...................... : No
Self encryption drive................... : Yes
SED Info read........................... : There are no key dir modules

DCM in module 47........................ : KA
DCM in module 0A........................ : |B|QKA9VZD
DCM in module 02........................ : S|BBLAPQMKHAC9RVVZKEUB
