Western Digital WD10TMVW Data Recovery

At Zero Alpha, we specialise in Western Digital WD10TMVW data recovery — a model commonly found in external USB drives with integrated USB-to-SATA bridge boards. These drives are known to fail due to physical damage, firmware corruption, or electronic faults, often making DIY recovery impossible. Our expert tools and techniques allow us to bypass damaged interfaces, access the drive directly, and recover your valuable data safely and efficiently.

western digital WD10TMVW-11ZSMS5 data recovery

Western Digital WD10TMVW Common Problems

  • Integrated USB board failure – The onboard USB-to-SATA bridge can fail, making the drive undetectable.

  • No power or spinning – Caused by PCB failure or damaged power components.

  • Slow or freezing detection – Often a symptom of firmware corruption or sector degradation.

  • Clicking sounds – Indicates internal mechanical failure, such as heads stuck or failing.

  • Beeping noise – Usually points to seized motor or heads stuck on the platter.

  • Drive not recognised in Windows or Mac – Could be logical corruption, USB board issues, or firmware problems.

  • Burnt or shorted components – Especially near the USB connector, due to power surge or improper connections.

  • File system corruption – Drive mounts, but data appears missing or inaccessible.

  • Dropped or physically impacted drive – Can cause head crash or internal misalignment.

  • Encrypted firmware access – Some WD10TMVW drives have encryption tied to the USB board, requiring specialised access methods.

WD10TMVW-11ZSMS5 Data Recovery Case Log

09May24 : The drive is clicking and spinning down. pcb is 771814,  SATA convert to 771820. wrote rom to sata board with blocked mod 02.unable to isolate heads, need to swap. rewrote original ROM, SA is not blocked.

Heads parameters:

Encode Date............................. : JUL 2012
Model................................... : WD10TMVW
Sub model............................... : 11ZSMS5
Country of manufacture.................. : TH
headsmap................................ : 0,1,2,3,4,5
Preamp vendor........................... : 0000
Preamp revision......................... : 0006
MJ0..................................... : A3A--C91
MJ1..................................... : AE4--D3B
MJ2..................................... : A5C--CB3
MJ3..................................... : AC6--D1D
MJ4..................................... : A1C--C73
MJ5..................................... : AF2--D49
ROM..................................... : 00650006

WD10TMVW-11ZSMS4 Data Recovery Caselog

20May25: This wd hdd makes a buzzing noise and stopped working. PCB: 2060-771761-001. It makes really bad clunking and clicking sounds when plugged in and does not detect on any computer. Using a special unlocked pcb we were able to recover all the files and folders back.

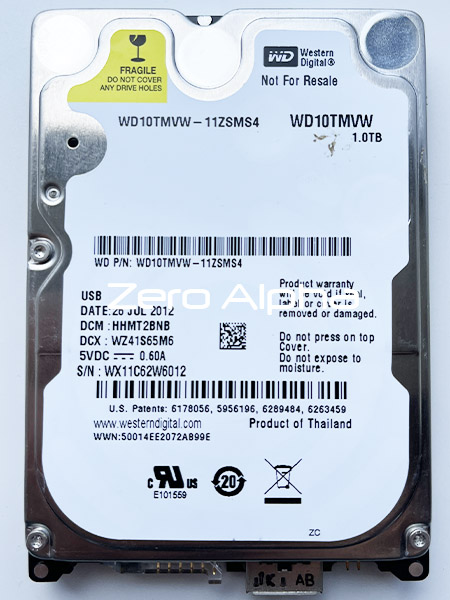

western digital wd10tmvw-11zsms4 data recovery
