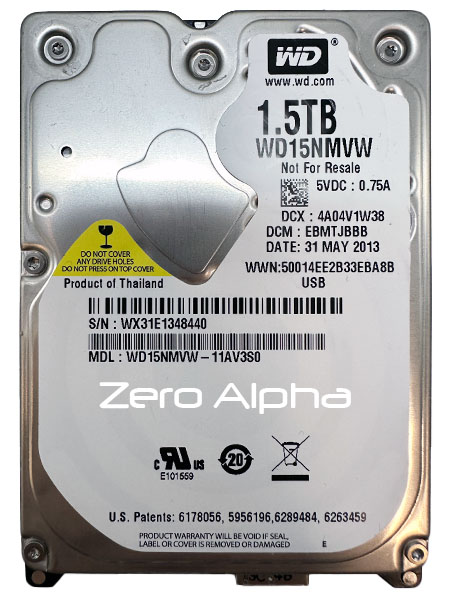

Western Digital WD15NMVW Data Recovery

We provide professional data recovery for Western Digital WD15NMVW 1.5TB drives. Our cleanroom workflow, firmware tools, and donor inventory are set up specifically for WD USB-board models to maximise your chances of a full recovery. We accept secure mail-in jobs Australia-wide.

western digital wd15nmvw data recovery

Western Digital WD15NMVW Common Problems

  • Integrated USB board failure: WD15NMVW uses a PCB with a built-in USB bridge; if it fails, the drive isn’t natively SATA-accessible.
  • Broken USB 3.0 micro-B port: Loose or torn ports cause intermittent detection or no power.
  • Hardware encryption via USB bridge: Data often appears encrypted; original PCB ROM/adaptives are required to decrypt correctly.
  • Firmware module corruption: Issues in translator or module defects lead to slow reads or failure to mount.
  • Weak or failed read/write heads: Clicking, repeated spin-ups, or inability to access service area.
  • Bad sectors/media degradation: Age and wear causing unstable imaging and file corruption.
  • Power surge/ESD damage: Burnt TVS or damaged power rails on the USB PCB.
  • Accidental reinitialisation/reformat: Quick formats or OS prompts after USB errors.
  • Drop or shock damage: Physical impact leading to head crash or platter damage.

Western Digital WD15NMVW Models

  • WD15NMVW-11AV3S0
  • WD15NMVW-11ABCS1
  • WD15NMVW-11AV3S2
  • WD15NMVW-11ABCS2

1.5TB WD15NMVW

06Aug26: This 1.5TB Western Digital hard drive was mailed in from the Sunshine Coast QLD for data recovery because its not detecting. Model: WD15NMVW-11AV3S2. PCB: 2060-771961-001. There are a lot of issues reported in the smart error logs. We convertered the pcb to sata and applied a firmware patch to get it to read data again.

Western Digital WD15NMVW-11AV3S0 Clicking Data Recovery Caselog

03SEP25: The hard drive was dropped. The hard drive is clicking. Patient PCB 771961. Sata compatible PCB is 771960. Sata convert.Mha SWAP. MRB. Decrypted in DE.

WD15NMVW-11AV3S3 Not Spinning Liquid Damage Data Recovery Caselog

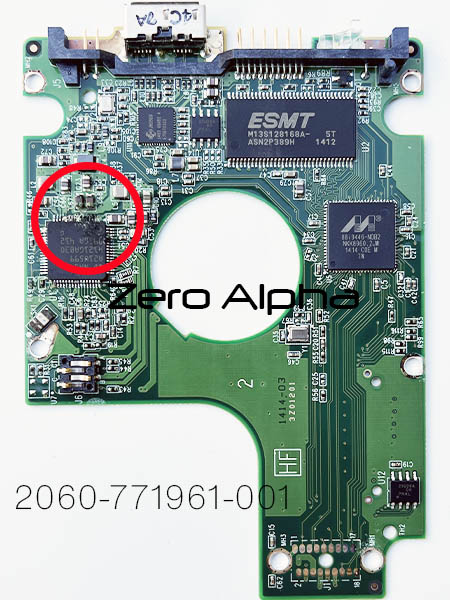

22SEP26: The hard drive is not spinning. When you plug it in you can smell something pungent. A cat urinated on this hard drive. Once we opened the case you could see corrosion on the pcb and inside the case. This drive was removed from a WD Elements WDBU6Y0015BBK-05. PCB 2060-771961-001 REV A. The hard drive is liquid damaged. The rom chip is 25U20A and would not read connected to the pcb so we had to remove it and then it gave a checksum correct rom bin file. We programmed a new sata pcb and were able to access the drive again. The drive was not encrypted and had a NTFS Elements.

wd 2060-771961-001 corroded pcb liquid damage data recovery
